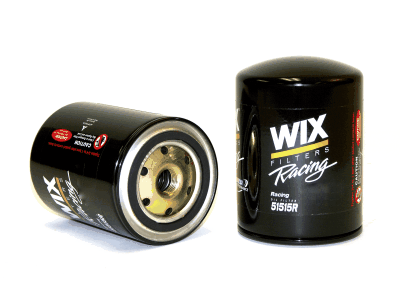

Wix 51515R Racing Oil Filter Suit Ford, Mopar, 3/4-16 Thread With Anti Drain Back Valve

Wix 51515R Racing Oil Filter Suit Ford, Mopar, 3/4-16 Thread With Anti Drain Back Valve

Regular price $43.98 AUD
Regular price $49.75 AUD Sale price $43.98 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Wix 51515R High Efficiency Race Oil Filters are for use on dirt, clay & off road race tracks. They are built to withstand extreme bursts of pressures (up to 500 psi) and extremely high racing temperatures (up to 300° F). Zinc chromate-plated base plate provides low surface friction and is corrosion-free, and spiral-wound centre tube provides increased collapse pressure and enhanced flow pattern. All filters are individually sealed to protect against contamination.

Product Specifications

Part Number: 51515R
UPC Number: 765809129054
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow
Media: Enhanced Cellulose
Height: 5.17(131)*
Outer Diameter Top: 3.6(91)*
Outer Diameter Bottom: Closed:
Thread Size: 3/4-16
By-Pass Valve Setting-PSI: 8-11
Anti-Drain Back Valve: Yes
Max Flow Rate: 28 GPM
Nominal Micron Rating: 61

(  )* denotes metric

Gasket Diameters

Number O.D. I.D. Thk.
Attached 2.834 (72)* 2.462 (63)* 0.200 (5)*

Cross Reference: K&N HP-3001, Moroso 22470

Advanced Performance (AP) Oil Filters use a media that is rated at a Frazier air flow of approximately 267 CFM and is wire-backed. The unique wire-backing provides a very stable base for a media blend of fiberglass, polyester and cellulose. This media is resistant to high temperatures and water levels in the oil that can plug standard media types. Our Advanced Performance media is designed to provide a high positive oil flow with low restriction.
High Efficiency Endurance (HEE) Oil Filters use a media rated at a Frazier air flow of approximately 75 CFM. This media contains a higher resin content than our Advanced Performance Filters to trap and hold smaller contaminant's and provide higher efficiency.



Filter Number Thread Size Filter Height Filter OD Media Type Flow Rate GPM Bypass Valve Setting Anti-Drain Back Valve*
51060R* 13/16-16 5.17 3.6 HEE 28 None Yes
51061R 13/16-16 5.17 3.6 HEE 28 None No
51069R 13/16-16 4.33 3.6 HEE  28 None No
51222R 1-1/2-12 6.21 4.6 HEE  28 18-22 PSI No
51268R 1-1/8-16 5.21 3.6 AP 30 None No
51515R* 3/4-16 5.17 3.6 HEE  28 8-11 PSI Yes
51794R 13/16-16 7.82 3.6 HEE  28 None No
57003R 1-1/2-12 6.21 4.6 AP 30 18-22 PSI No
57007R 1-1/2-16 5.9 4.2 AP 30 18-22 PSI No
57008R None 4.030 1.969 AP 30 None No
57015R None 6.4211 2.3 AP 30 None No
